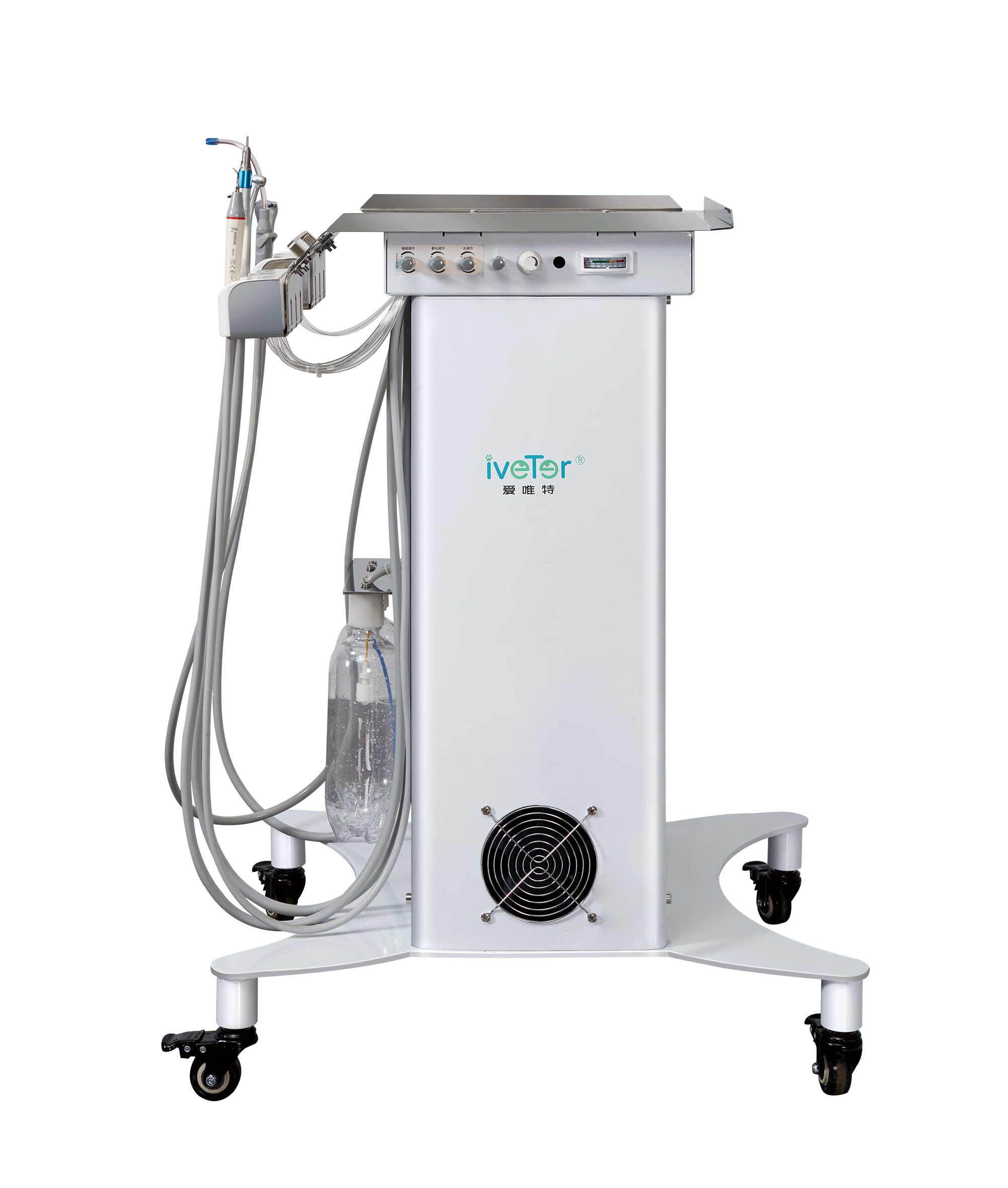

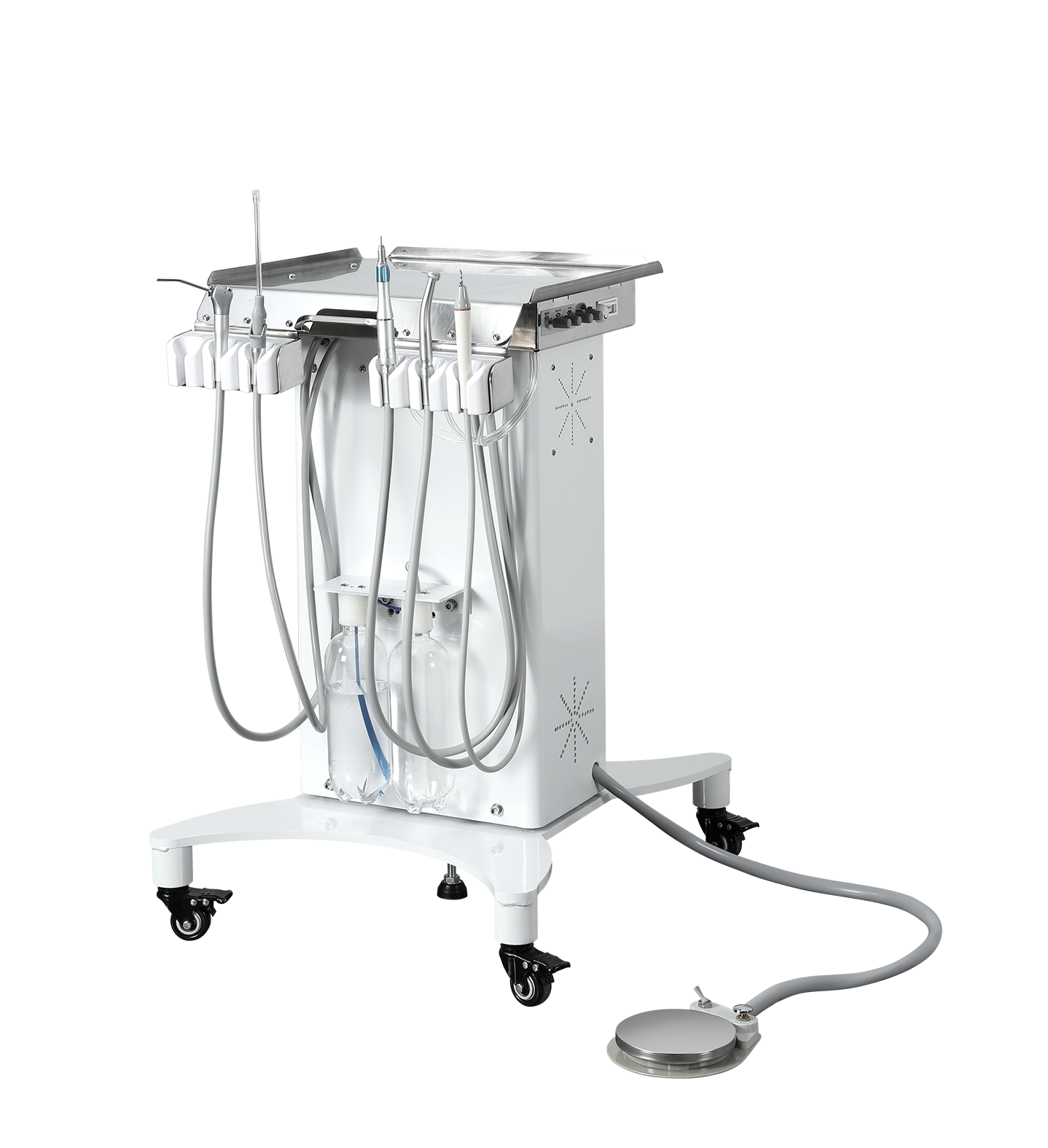

The V2 Series is a compact and mobile veterinary dental treatment table for small animal clinics, veterinary hospitals and established pet clinics. Its integrated utilities include a clean water bottle, waste water bottle, stainless steel instrument tray, suction, a 3-way syringe, an ultrasonic scaler and a built-in oil-free air compressor, so no external compressed air source is required for the standard air-supply configuration. Choose the V2 base configuration, V2-1 with a dental light or V2-X with an X-ray module according to your workflow.
| Configuration | Main Difference | Recommended For |
|---|---|---|
| V2 | Base mobile veterinary dental treatment table | Clinics needing a compact dental treatment workstation |
| V2-1 | V2 platform with a dental light | Oral examination and dental procedures requiring integrated illumination |

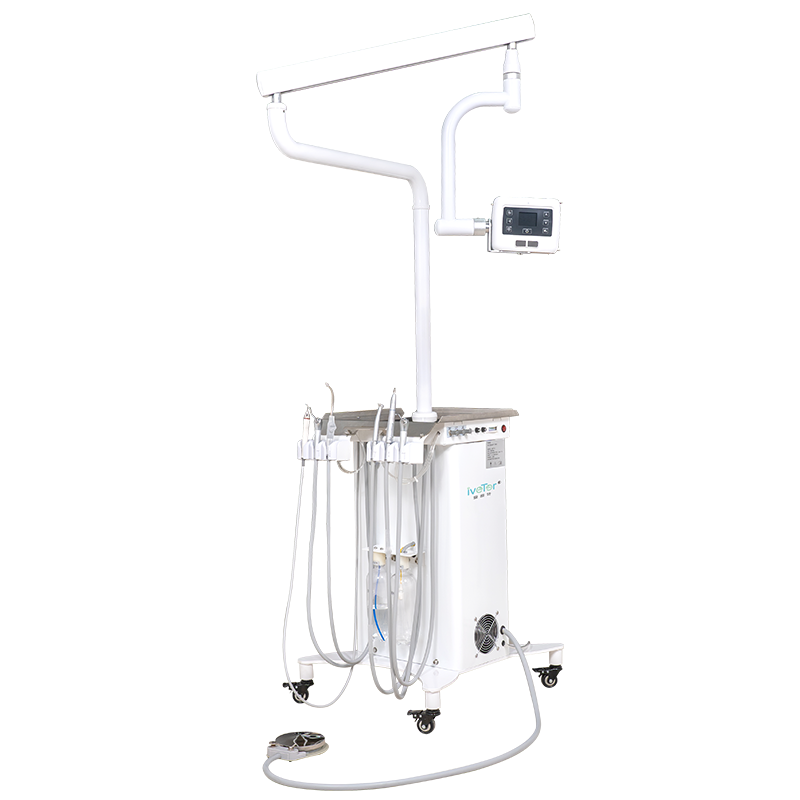

| V2-X | V2 platform with an X-ray module | Clinics requiring an X-ray configuration, subject to destination-market requirements |
The V2-1 configuration includes a dental light.
| Input voltage | AC 12–24 V |
|---|---|
| Rated power of dental light | 12 W |
| Light sources | 4 pcs |
| Illumination | Adjustable from below 8,000 Lux up to 20,000 Lux |
| Color temperature | 6,500 K |
| Control | Infrared sensing switch plus manual multi-mode dimming |
| Operation and protection | Continuous operation; IPX0 |
| Operating environment | 10–40°C; relative humidity 30–85% |
| Tube voltage | 60 kV |
|---|---|
| Highest voltage | 70 kV |
| Tube current | 2 mA |
| Exposure time | 0.01–1 s |
| Focal spot | 0.4 mm |
| Anode target angle | 12° |
| Total filtration | 1.0 mmAl |
| Battery capacity | 950 mAh |
The X-ray configuration should be reviewed according to the destination market, required documents and local compliance requirements before ordering.
| Product family | V2 / V2-1 / V2-X |
|---|---|
| Rated power of air compressor | 580 W |
| Air compressor specification | 15 L |
| Water capacity | 1,000 ml |

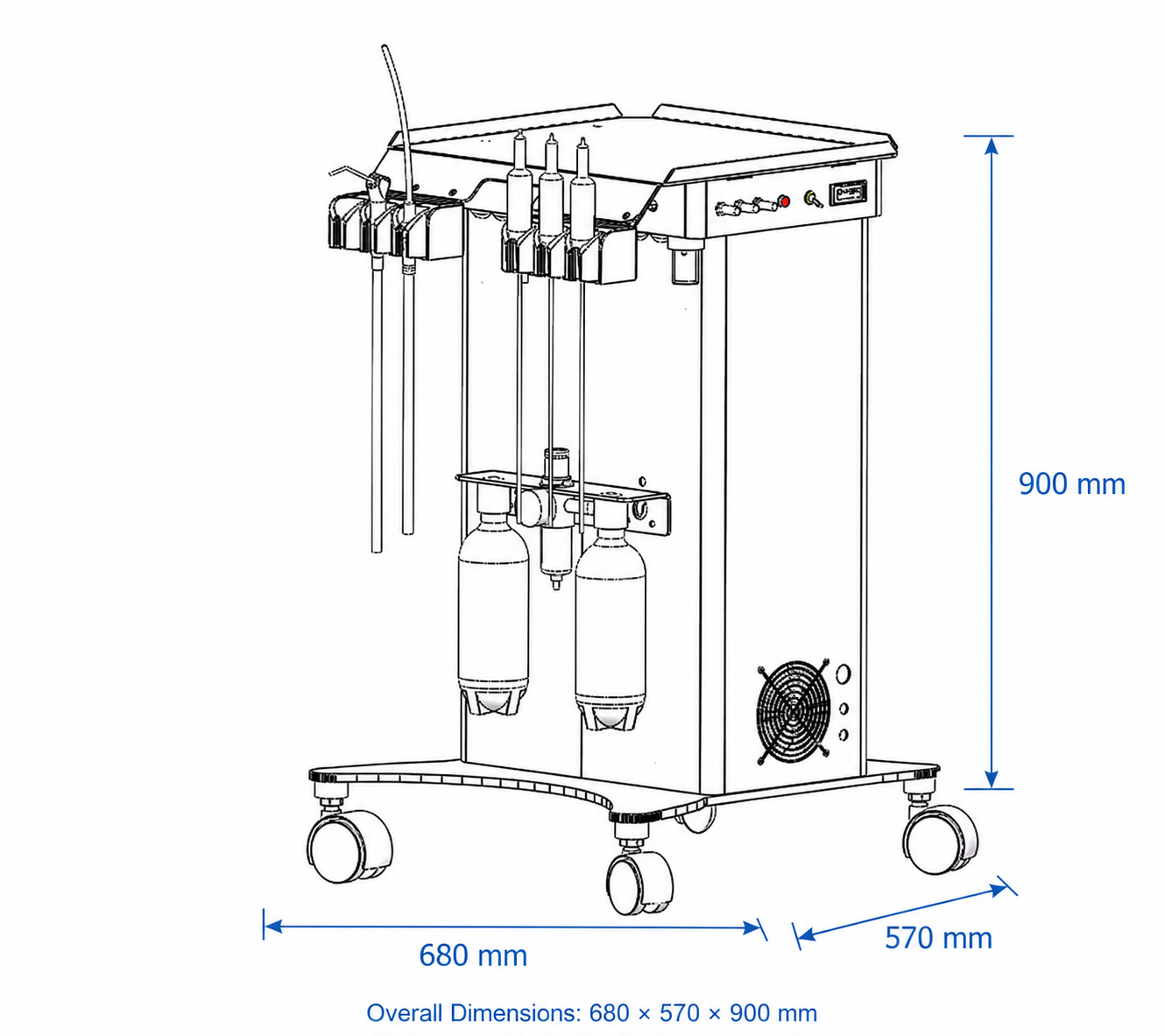

| Dimensions | 68 × 57 × 90 cm |
| Net weight | 67 kg |
| Gross weight | 95 kg |
| Maximum load | 50 kg |
The V2 Series is suitable for veterinary dental treatment, oral examination, scaling, routine procedures and mobile clinic workflows for small animals. For an already established pet clinic, the integrated utilities can reduce installation work: connect power, select the required accessories and prepare the unit according to the local installation and safety requirements.
All three configurations use the same mobile treatment table platform. V2-1 adds a dental light, while V2-X adds an X-ray module.
They are available as optional configurations and should be selected in the quotation.
No external compressed air source is required for the standard built-in oil-free air compressor configuration.
Yes. Dental light, dental curing light, intraoral camera, X-ray and dental handpiece configurations can be selected according to the required package.
The X-ray configuration should be reviewed according to the destination market, required documents and local compliance requirements. Contact us for configuration confirmation.
Tell us which version you need: V2, V2-1 or V2-X. Please also provide your required quantity, destination country, voltage, accessory requirements and target delivery date.
