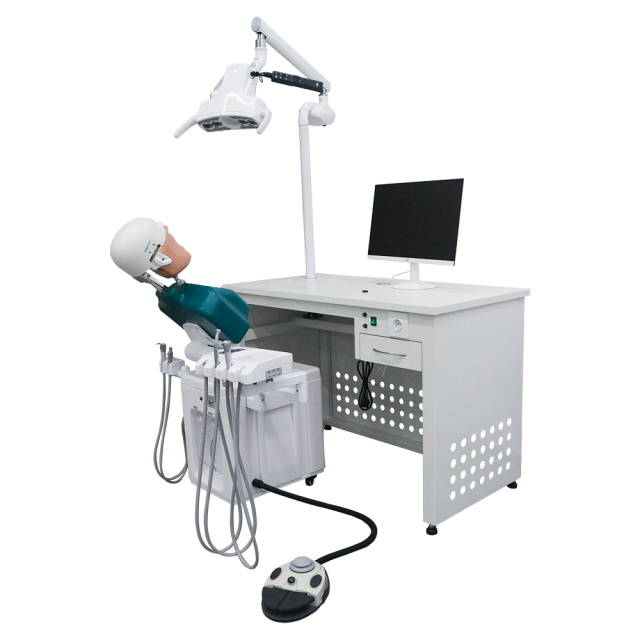

Electric Dental Simulation Lab with Recording System – JG-A3

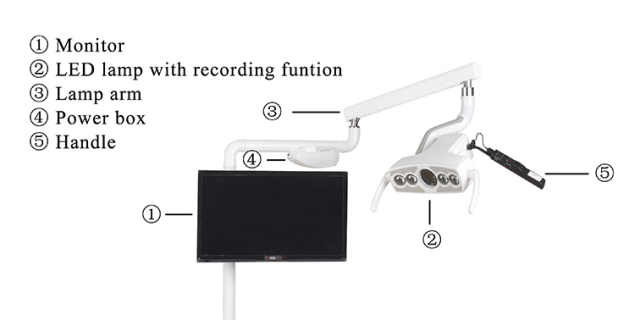

The JG-A3 is an electric dental simulation station designed for teaching capture and group demonstration. Its LED recording lamp, integrated camera, 21.5-inch monitor and HDMI output help instructors record procedures and share close-up views.
| Component | Quantity |
|---|---|
| Workbench, 1200 × 600 × 800 mm | 1 |
| Electric movable section | 1 |
| Phantom head | 1 |
| Dental typodont | 1 |
| High-speed handpiece | 1 |
| Low-speed handpiece | 1 |
| 3-way syringes | 2 |
| LED recording lamp | 1 |
| 21.5-inch monitor | 1 |
| Dentist stool | 1 |
| Foot control | 1 |
| Clean water bottle | 1 |
| Waste water bottle | 1 |
| Weak suction | 1 |
| Item | Specification |
|---|---|
| Operation | Electric; one student |
| Workbench | 1200 × 600 × 800 mm |
| Display | 21.5 inches |
| Video output | HDMI |
| Optional tray | 100 mm stainless steel tray |
Simulation laboratories that emphasize instructor demonstration, procedure recording and cohort review.
Confirm recording computer requirements, HDMI display routing, electrical service, compressed air and water handling. Document the optional tray separately if required.
View the complete dental simulator range. Compare this model with JG-A7 simulator with recording system and JG-A15+ simulator with integrated workbench.
Need a configuration list for your room size and student capacity? Contact JingleMed with your required number of training positions, utilities and optional modules.
