Setting up a preclinical dental lab—or upgrading an existing one—is a major procurement decision for any dental school. The equipment, room interfaces, consumables, and service plan should all support the curriculum before students begin clinical training.

This guide covers the core equipment categories, facility-readiness checks, workstation planning, and procurement questions for a new or upgraded dental training lab.

Use it as a starting checklist, then validate the final configuration with your teaching team, facilities team, and applicable local requirements.

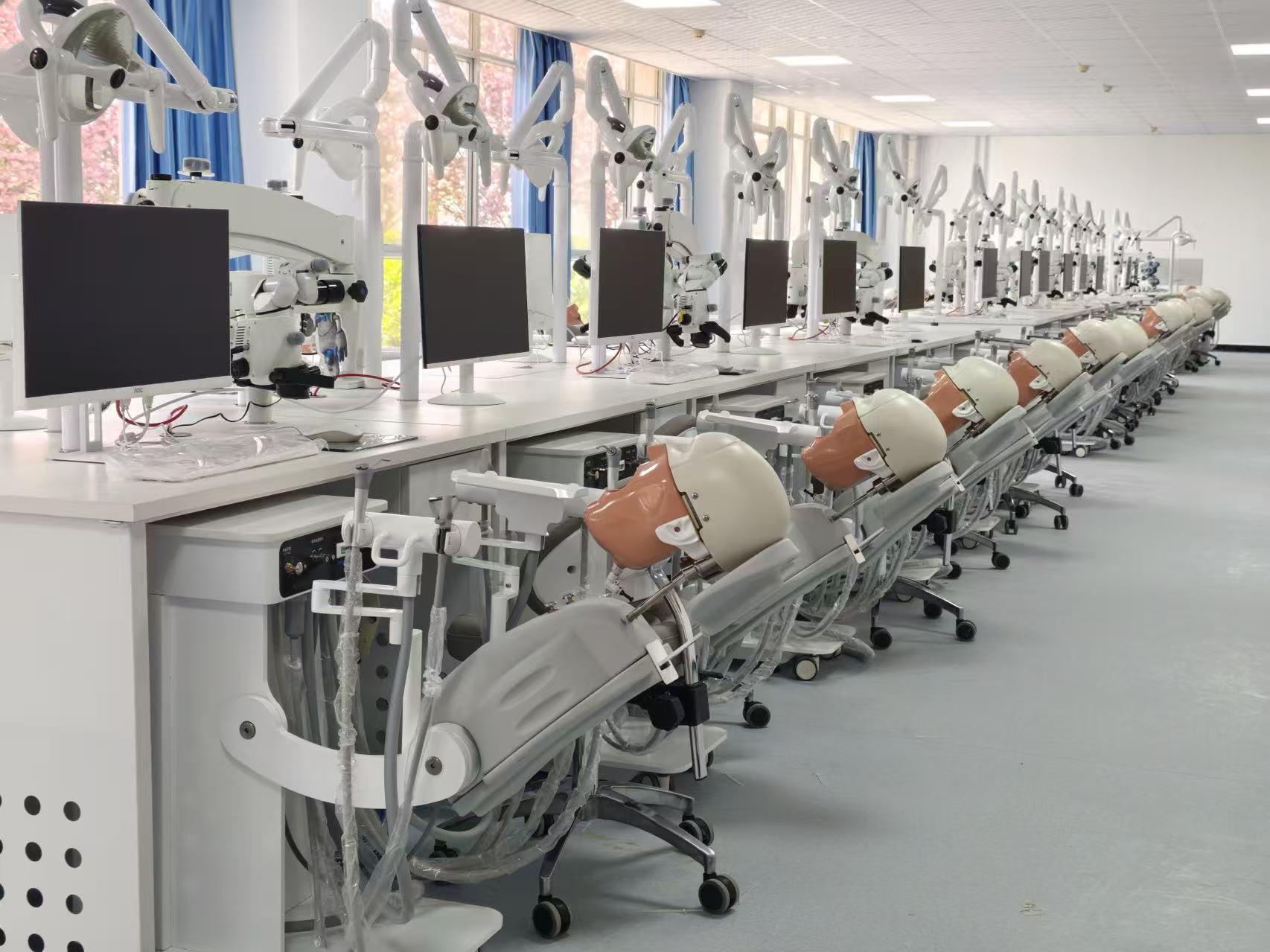

1. Dental Simulators—The Core of a Preclinical Lab

A dental simulator is typically the main workstation for preclinical practice. Depending on the model, it may integrate a phantom head, mounting structure, positioning mechanism, and a simulated patient body or work surface.

Key specifications to verify with the supplier:

• Mounting type—Choose chair-mounted, bench-mounted, floor-standing, or mobile configurations according to the room layout and teaching method.
• Positioning range—Confirm the documented rotation, tilt, height, and locking range needed for your curriculum; do not rely on a generic range claim.
• Phantom-head compatibility—Confirm the mounting interface, collar dimensions, and approved typodont systems, especially when equipment comes from more than one supplier.
• Durability and maintainability—Review the frame materials, joints, rated use conditions, cleaning instructions, warranty, and replacement-part list for the exact model.
• Serviceability—Ask for spare-part pricing, availability, technical documentation, and the support route before placing the order.

Browse Jinglemed's dental simulators for preclinical labs, including chair-mounted, bench-mounted, and floor-standing configurations.

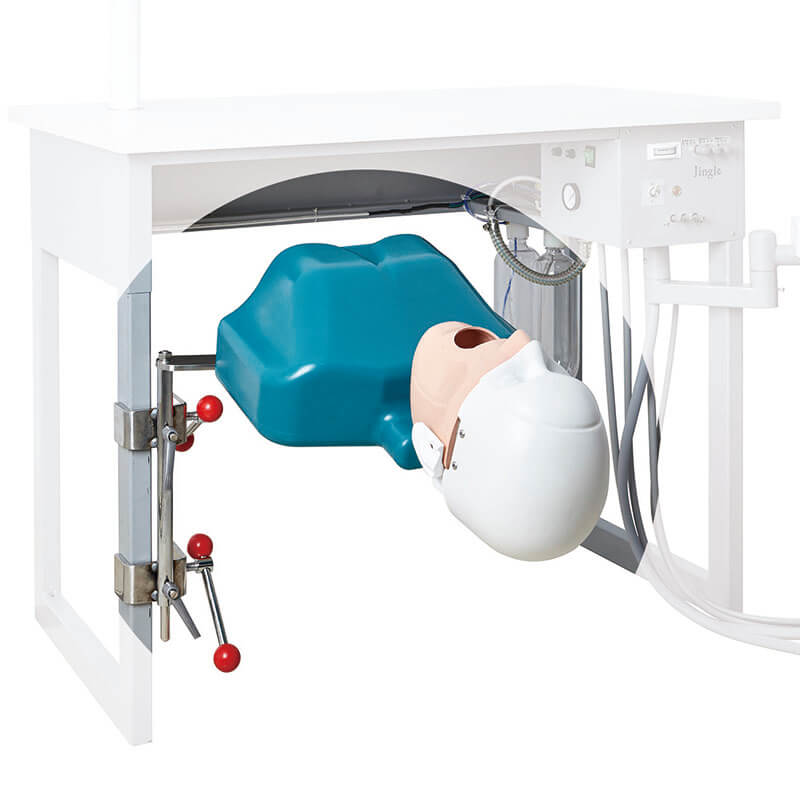

2. Phantom Heads & Typodonts

The phantom head is the training unit students work on directly. Depending on the model, it may include a typodont, face mask, jaw mechanism, and mounting interface. Plan additional units or parts for demonstrations, curriculum development, and replacement during maintenance.

Typodont selection should follow the procedure being taught. Product names and material descriptions vary by supplier, so verify the exact product data sheet and test samples with faculty before standardizing a lab-wide system.

Budget typodonts by curriculum module: estimate the number of learners, exercises, and teeth or models consumed per exercise, then add an agreed contingency. See our phantom heads and typodont systems.

3. Dental Units & Delivery Systems

For programs teaching a full chair-side workflow, include a dental unit or simulation delivery system in the station plan. Depending on the selected configuration, this may provide:

• Air/water syringe functions
• High-speed and low-speed handpiece connections
• Saliva ejector and HVE connections
• A cuspidor and dental light on selected full-chair configurations

Simplified training delivery units can be a practical alternative where a full chair is not required. They may reduce footprint and infrastructure complexity, but compare the full installed cost, service plan, and learning outcomes before choosing a configuration.

Procurement tip: Confirm all air, water, drainage, suction, electrical, and installation requirements before finalizing the room plan. Retrofitting a completed lab can be costly and disruptive.

4. Dental Handpieces & Instrument Sets

Choose instruments that match, or appropriately approximate, the procedures taught in the curriculum. A station package may include:

• High-speed handpiece—for cavity and crown preparation, where included in the curriculum
• Low-speed or contra-angle handpiece—for finishing, polishing, and related exercises
• Ultrasonic scaler—where periodontics or hygiene simulation requires it
• Basic instrument cassette—for example, mirrors, probes, explorers, scalers, and forceps selected by the teaching team
• Restorative instruments—such as matrix systems and composite placement instruments where required

Using consistent connection standards and serviceable instrument systems can simplify maintenance. Confirm compatibility between handpieces, couplings, delivery systems, and simulator workstations before ordering.

5. Lighting, Magnification & Supporting Equipment

• Operatory lights—confirm illumination, mounting, power, and positioning requirements for the chosen stations.
• Loupes / magnification—consider these when magnification training is part of the clinical-preparation curriculum.
• Radiography training equipment—include this only after the school has confirmed local licensing, shielding, radiation-safety, and supervision requirements.
• Articulator sets—select quantities and specifications to suit prosthodontics and occlusion modules.
• Instrument reprocessing area—where curriculum and local requirements call for it, plan a separate infection-control or reprocessing learning area.
• Storage and cabinetry—plan secure storage, cassette racks, supply drawers, and clear inventory ownership.

6. Facility Readiness Checklist Before Ordering

Confirm these items with the school’s facilities team and the selected supplier before production begins:

• Electrical—voltage, frequency, outlet locations, dedicated circuits, grounding, and emergency shut-off requirements.
• Utilities—compressed-air pressure and flow, air quality, water supply, drainage, and suction or vacuum requirements where applicable.
• Room layout—station footprints, aisles, supervision sightlines, accessibility, storage, cleaning access, and any floor-loading or anchoring requirements.
• Installation and acceptance—site readiness, commissioning responsibilities, test criteria, staff training, manuals, warranty contacts, and an initial spare-parts list.
• Project documentation—approved room plan, equipment schedule, utility drawings, packing list, installation plan, and agreed delivery terms.

For the equipment schedule, supplier responsibilities, and acceptance requirements, see the dental training room procurement checklist.

7. How Many Workstations Do You Need?

Size the lab around the peak number of learners who must operate at the same time. Count independent practice positions first, then calculate simulator units using the number of independently usable phantom heads per unit. A doctor-assistant pair sharing one head provides one independent practice position at a time.

Practical starting formula:

Hypothetical example: A program with 60 students per year schedules three non-overlapping practical groups of 20. If all 20 learners in the busiest group must practice independently at the same time, it needs 20 independent practice positions. Calculate simulator units by dividing 20 active operators by the independently usable phantom heads per selected unit and rounding up. Determine instructor demonstration units and maintenance spares separately.

Plan phantom-head spares separately from typodont consumables. The correct quantities depend on the selected model, warranty coverage, failure history, curriculum, and expected consumption per module.

8. Working with a Manufacturer: OEM, Bulk Orders & Custom Configurations

For multi-station projects, compare a manufacturer-direct proposal with qualified local distribution options. A direct supplier may offer configuration control and consolidated production, while a local distributor may provide installation, import handling, warranty response, and on-site support.

• Configuration control—confirm mounting interfaces, typodont compatibility, required utilities, and optional components against the curriculum.
• Total landed cost—compare unit price, freight, insurance, duties, installation, commissioning, consumables, spares, and service coverage.
• Project schedule—agree a dated plan covering sample approval, production, inspection, shipping, import, installation, and acceptance.
• Acceptance and support—define inspection criteria, warranty scope, response route, manuals, training, and replacement-part availability in writing.

Jinglemed has focused on dental education equipment since 2016. Learn more about our OEM & ODM options for institutions and equipment brands, or contact us with your project specifications.

9. Quick Equipment Checklist by Lab Type

This is a planning starting point, not a universal equipment prescription. Confirm each item against the curriculum, facility, and local requirements.

Frequently Asked Questions

Pre-Purchase Project Brief

Before requesting a final quotation, prepare a short project brief so each supplier can quote the same scope:

• Station count: peak simultaneous learners, planned learners per station, and instructor demonstration stations.
• Mounting and layout: chair, bench, floor-standing, or mobile configuration; existing dental chairs or benches; and available room dimensions.
• Utilities and site readiness: electrical, air, water, drainage, and network requirements for the selected configuration.
• Consumables and support: typodont standards, initial consumables, recommended spare parts, warranty coverage, and service response expectations.
• Commercial and acceptance requirements: destination country, requested delivery date, installation scope, required documents, and practical acceptance criteria.

Certification, electrical-safety, delivery, and installation requirements must be confirmed for the exact configuration, intended use, and destination market before purchase.
